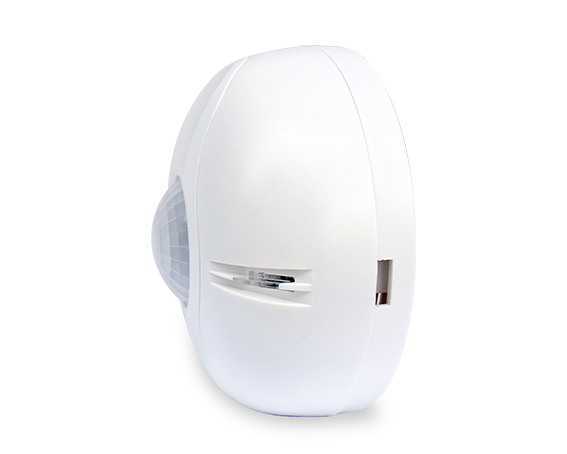

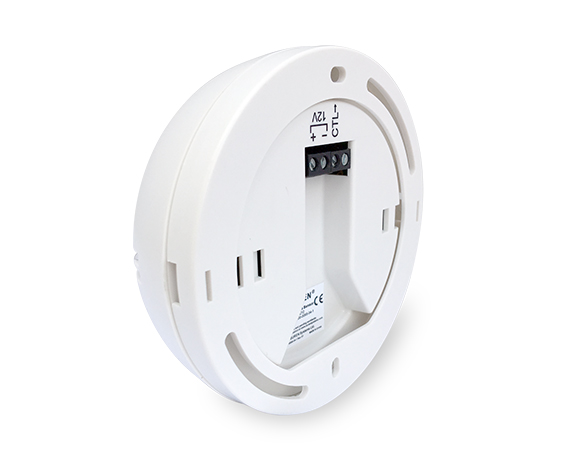

All-in-One Hi-Bay Occupancy Sensor,Line Voltage,100-277VAC,8m range Ceiling Mount

All-in-One Hi-Bay Occupancy Sensor,Line Voltage,100-277VAC,8m range Ceiling Mount

Models : HB-1308

Designed for Hi-Bay Application

● Indoor Hi-Bay Occupancy Sensor

● HDIR® 8-Element IR Detector with unique optical lens design for Hi-Bay application

● 4m to 6m mounting height

● 6m to 8m diameter

● AC Powered

● High Ceiling Mount / Recess-Mount

● -10°C to +55°C

Application：

Lighting/comfort control

√ Warehouse

√ Carpark

√ Commercial Building

Inquire Now

OVERVIEW
PRODUCT FEATURES
SPECIFICATIONS
MANUAL

OVERVIEW

HB-1308 -Designed for Hi-Bay Application

The HB-1308 is a high-performance high-bay motion sensor equipped with unique infrared technology and a multi-segment lens array. It can detect human movement within a 16-meter diameter area. Supporting both surface and flush mounting, it is capable of driving a wide range of loads, making it suitable for efficient energy management in warehouses, factories, and other similar facilities.

PRODUCT FEATURES

HDIR™** 8-Element IR Detector with unique optical lens design for Hi-Bay application
Adjustable PIR sensitivities for different applications / environments
Adjustable Sunset sensor to enable lighting only when ambient light is low
Adjustable 30s-30m for Delay“OFF” time
LED indicator for testing purpose
Spring clips for mounting in drop ceiling & trim ring for solid ceiling

SPECIFICATIONS

Mounting Height	4m-6m
Detection Range	8m diameter at 6m mounting height
Operating Voltage	100 -277 VAC
Max.Load	2000W
PIR	8-element Pyroelectric
Approval	CE
RF Immunity	20V/m, 10-1000MHZ; 10V/m, 1000-2000MHZ
Operating Temperature	-10°C ~ +55°C
Relative Humidity	0% to 90% non-condensing
Dimensions	110mm D x 56mm H

MANUAL

HB-1308 Installation Manual : Click here

HB1308_1316 Manual.pdf
