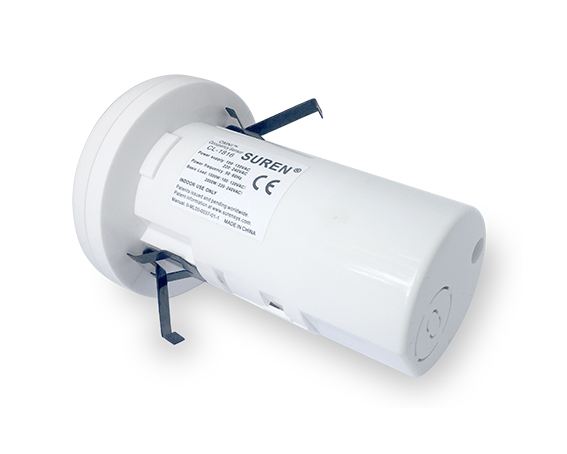

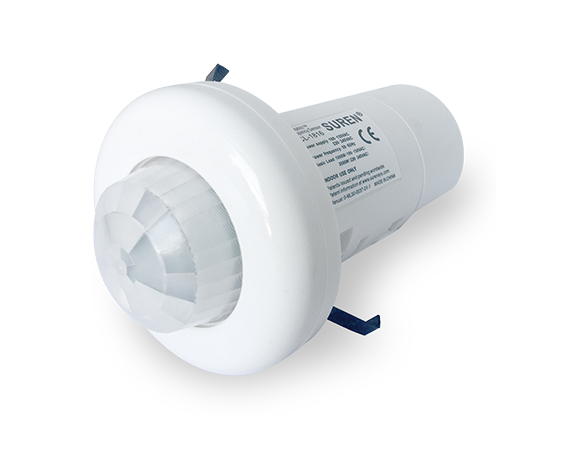

CL-1816

The CL-1816 is a motion sensor based on SUREN OMNI^TM ( Omni-directional) passive infrared technology, which is used to detect people moving in a room by sensing their motion. The sensor provides excellent movement detection capability with its specially designed eight-element interleaved IR detector and multi-segment lens array.

The CL-1816 is recessed for an attractive, unobtrusive appearance, while it still monitors a full 16-meter circular area from a 2.4m height.

The sensor is a three-wire unit, and is fitted with a high-capacity relay that is capable of driving a wide range of load types, including lighting or HVAC devices

• QUAD+™**  8-Element IR Detector with unique optical lens design for small-motion detection within a 16-meter circle.

• SummerSense™ Warm-weather DSP:Good summertime detection.

• 16A relay output to control external contactors


• Wide Range Operating Temperature (-40℃ to + 55℃)

• Adjustable 5s - 30min for " ON " time

• Adjustable sunset sensor to enable lighting only when ambient light is low

• Selectable Detection Sensitivity for different applications / environments

• Tightly-mated bug guard protects the sensor optics from insects,spiders and dust.

• LED indicator for testing purpose

• Three-Stage White Light Protection

• Spring Clips Mount for drop ceiling


CL-1816 Installation Manual : Click here

N-ML00-0037-01-1(CL-1816)Rev1.pdf
