M-5815       - Wide Angle

M-5815C     - Constant Curtain

M-5815AM - Anti-Masking

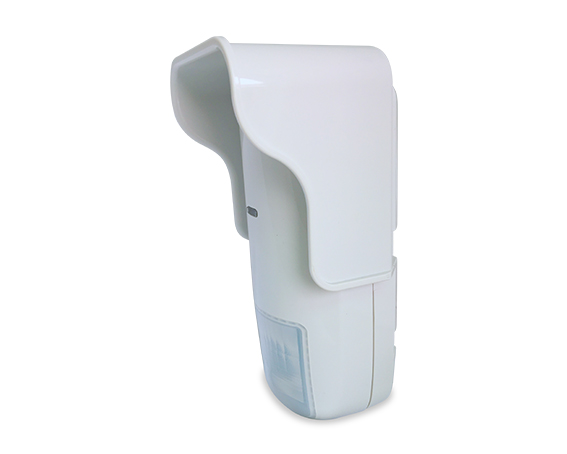

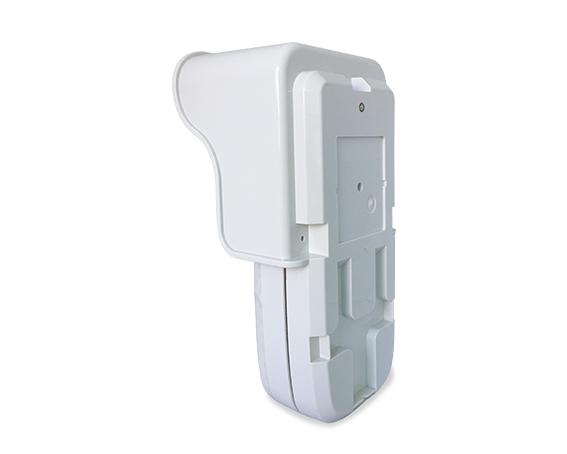

This outdoor M-TEC motion detector, integrating Dual Frequency Infrared (DFIRTM) technology and Microwave Doppler Technology (M-TECTM), provides users with an efficient, accurate, and reliable motion detection solution. It maintains stable performance under intense sunlight, rain, or low-temperature environments, ensuring continuous protection for user safety. It is widely used in various scenarios requiring motion detection, including home security, commercial surveillance, and more.

• Fits SUREN MP-200 Camere Base System or SUREN MB-200 Swivel Mount


• Look-down detection directly below the sensor, to catch wall-creeping intruders


• IP65 Waterproof Housing


• Precise factory calibration for dependable performance of every sensor


• Multiple white light immunity features:

   √ White diffusing lens

   √ White-light absorbing film

   √ Large IR detector window ( 4.2 x 5.2 mm )

• Consistent detection sensitivity throughout the monitored area

• Selectable processing sensitivity for different environmental requirements

• Continuous supervision of:

   √ Power supply voltage

   √ Ambient temperature

   √ IR detector operational parameters

• Operation from -30°C to +55°C

• Sensitive cover / base tamper detection switches

• Remote LED Enable control input


M-5815 | M-5815C |M-5815AM Installation Manual : Click here

N-ML00-0036-01-1(M-5815)Rev2.pdf
