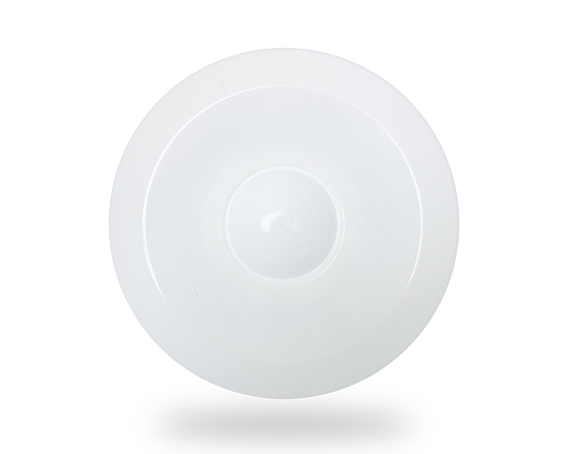

CX-806

The CX-806 includes two motion sensing systems: microwave Doppler motion sensing and PIR motion sensing. Together, the two systems' signals are evaluated by SUREN-proprietary signal processing algorithms, which reject false alarm conditions while detecting intruders.

•  Look-down detection directly below the sensor to catch wall-creeping intruders

• Precise factory calibration for dependable performance of every sensor‰

• Multiple white light immunity features:
  √ Clear bug guard – no light concentration
  √ White diffusing lens
  √  Large IR detector window (4.2 x 5.2 mm)

• Consistent detection sensitivity throughout the monitored area

• Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust

• Selectable processing sensitivity for different environmental requirements

• Sensitive tamper detection switch

• Full-time supervision of microwave function

• Automatic single-technology operation if one technology fails

• Continuous supervision of:
  √ Power supply voltage
  √ Ambient temperature
  √ IR detector operational parameters

• ‰Failure indication:
  √ Blinking LED
  √ Non-closing of alarm relay after any

  alarm signal event (Note: sensor will NOT initiate an alarm upon failure.)

• Remote LED Enable control input


CX-806 Installation Manual : Click here

N-ML00-0024-01-1(CX-806)Rev1.pdf
