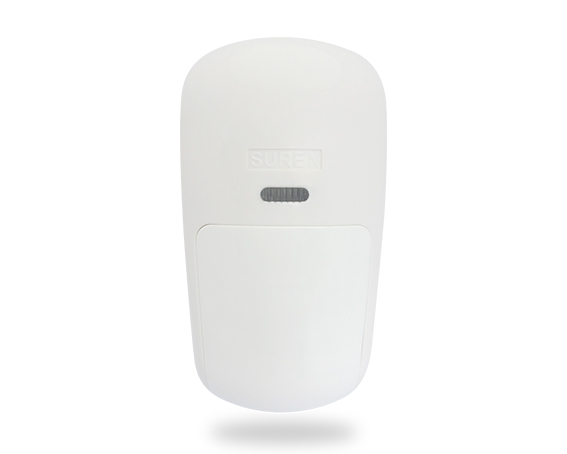

SX-810AM | SX-815AM

SX-810AME | SX-815AME-European Version

Microwave Doppler technology plus PYROFLEX™** Together, they create X–TEC™ high performance!

• ‰ Look-down detection directly below the sensor to catch wall-creeping intruders

• Precise factory calibration for dependable performance of every sensor

• Multiple white light immunity features:
  • Clear bug guard – no light concentration
  •White diffusing lens
  • Large IR detector window (4.2 x 5.2 mm)

• Consistent detection sensitivity throughout the monitored area

• Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust

• Selectable processing sensitivity for different environmental requirements

• Sensitive tamper detection switch

• Full-time supervision of microwave function

• Automatic single-technology operation if one technology fails

• Continuous supervision of:
  • Power supply voltage
  • Ambient temperature
  • IR detector operational parameters

• Failure indication:
  • Blinking LED
  • Non-closing of alarm relay after any alarm signal event
  (Note: sensor will NOT initiate an alarm upon failure.)

• Remote LED Enable control input

SX-810/SX-815、SX- 810E/SX-815E Series Installation Manual : Click here

0-ML00-0007-01-2(SX-810,815 EN) Manual.pdf
