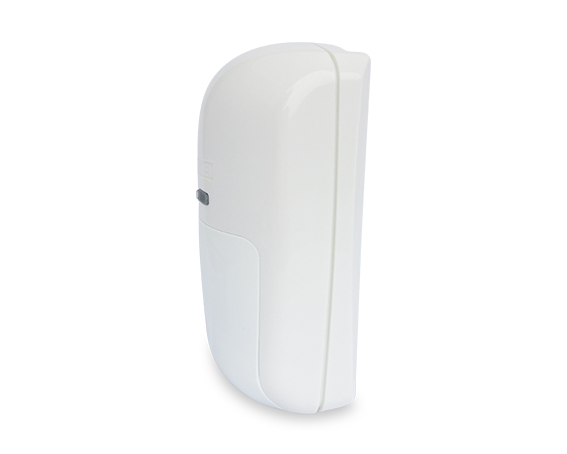

Models : MV-620 / MV-620E(European Version)
Accessories : MB-100 Swivel Mount Bracket
● Indoor Motion Sensor
● Reliable Microwave Doppler Technology plus digital signal processing
● Wall Mount
● DC Series
● 8~16VDC
● 15m Range
● -10°C ~ +55°C
● Adjustable sensitivity for different requirements
● Extremely high sensitivity for high security application
Application：
Applied in Highly Secure Settings Such as Banks, Museums, and Government Institutions
Detection Range | 15m |
Microwave Frequency | 9~11GHz |
Operating Voltage | 8~16VDC |
Operating Current | 15mA at 12VDC |
Alarm relay | Solid state, 50mA , 60VDC |
Tamper Switch | Form A (NC) : 50mA@30VDC |
RF Immunity | 20V/m,10-1000MHZ;10V/m,1-2GHZ |
Operating Temperature | -30 °C to +55 °C |
Dimensions | 112 x 50 x 42 mm |
Models : MV-620 / MV-620E(European Version)
Accessories : MB-100 Swivel Mount Bracket
A recognized innovator in the market of sensing and reporting solutions, SUREN® Systems develops, designs and manufactures a broad variety of "best-in-class" products that monitor defined areas and provide status information for security, comfort and energy management.
