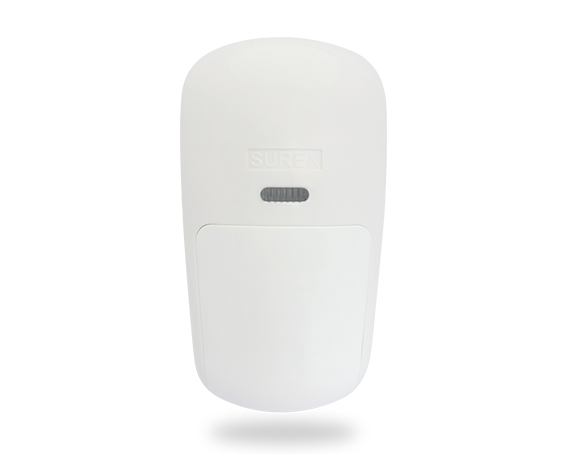

Models : SX-915AM / SX-915AME (Europe) Series
Accessories : MB-100 Swivel Mount Bracket
● Indoor Motion Sensor
● PYROFLEX™ PIR Detector plus Microwave Doppler Technology (X-Tech™)
● Anti-masking operation

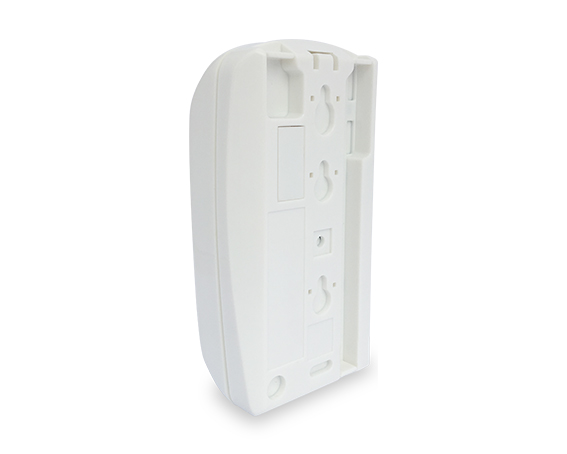

● Wall mounting
● 8~16VDC
● 15m Range
● -30°C ~ +55°C
Application：
Indoors for Commercial/Residential use.
Detection Range | 15m |
Microwave Frequency | 9~11GHz |
Operating Voltage | 8~16VDC |
Operating Current | 20mA at 12VDC |
Alarm Relay | Solid-state Form A, 50mA,60VDC |
Tamper Switch | Form A (NC): 50mA@30VDC |
RF Immunity | 20V/m,10-1000MHZ;10V/m,1000-2000MHZ |
Sensitivity | 2-event or 3-event(selectable) |
Operating Temperature | -30 °C to +55 °C |

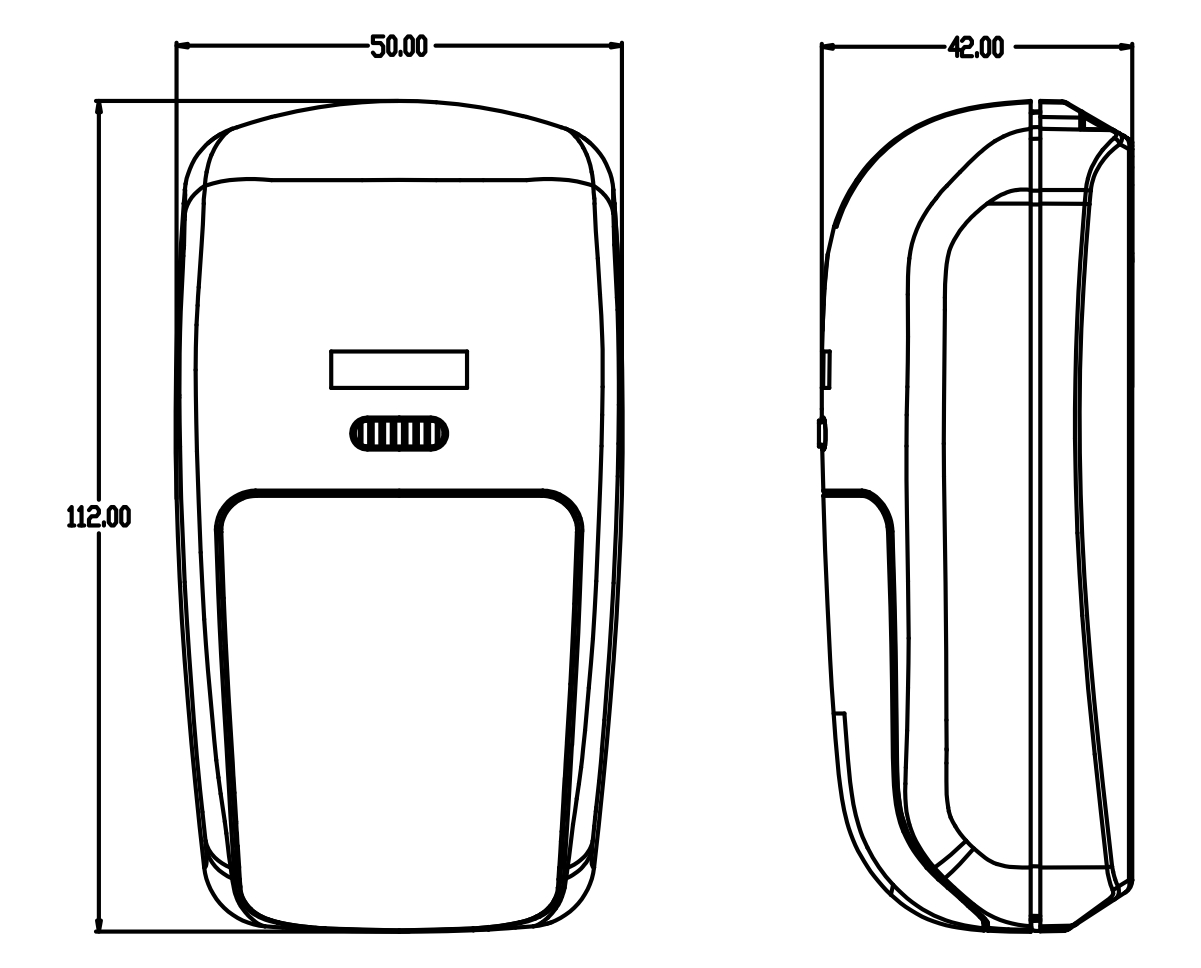

Dimensions | 112 x 50x42 mm |
SX-915AM | SX-915AME Installation Manual : Click here
SX-915AM(0-ML00-0069-01-1) EN MANUAL.pdf
