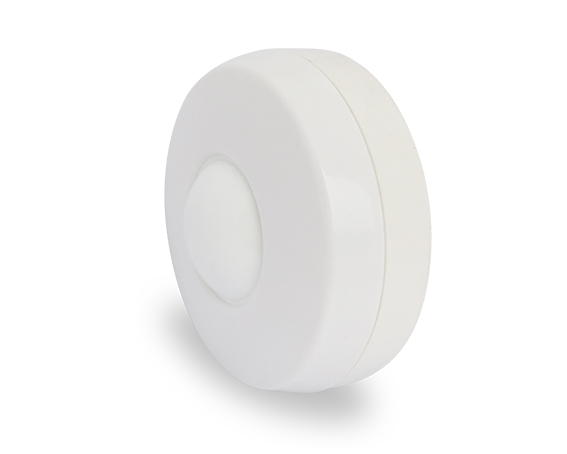

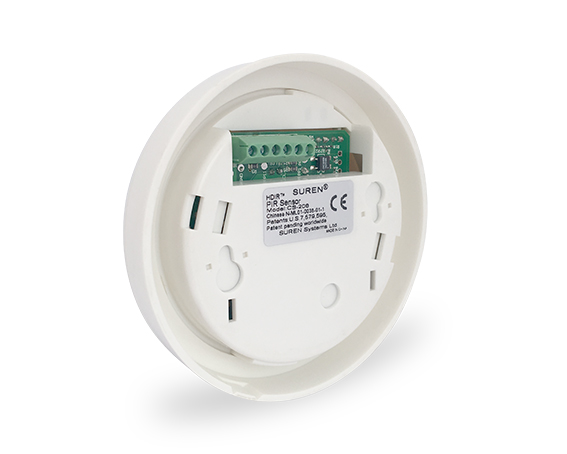

CP-206

The CP-206 is a motion sensor based on SUREN HDIRTM(High-Definition Infrared) passive infrared technology, which is used to detect people present in a room by sensing their very small motions. The sensor provides excellent occupancy detection capability with its specially designed eight-element IR detector and multi-segment lens array. A small-signal relay output is provided to control an external contactor to activate lighting or climate control systems.

A sunset sensor tells if ambient light is above an adjustable threshold level, thus disabling the relay output when lighting or climate control activation is not needed.

• HDIR™** 8-Element IR Detector with unique optical lens design for small-motion detection within a 6-meter circle.

• SummerSense™ Warm-weather DSP:Good summertime detection.

• Wide Range Operating Temperature(-40℃ to + 55℃)

• Adjustable 5s - 30min for Delay-Off time

• Adjustable sunset sensor to enable lighting only when ambient light is low

• Selectable Detection Sensitivity for different applications / environments

• Tightly-mated bug guard protects the sensor optics from insects,spiders and dust.

• LED indicator for testing purpose

• Three-Stage White Light Protection

• Spring Clips Mount for drop ceiling & Trim Ring for solid ceiling

CP-206 Installation Manual : Click here

N-ML00-0038-01-1(CP-206 12V)Rev2.pdf
